Model	Unit	HG-15	HG-20	HG-25	HG-35	HG-50	HG-100
Capacity	kg	15	20	25	35	50	100
Drum size	mm	Φ700 X 600	Φ800 X 600	Φ970 X 600	Φ970 X 880	Φ1200 X 860	Φ1450 X 1180
Fan Power	Kw	0.55	0.55	0.75	0.75	1.5	1.5X2
Motor power	Kw	0.14	0.14	0.2	0.4	0.75	2.2
Electric heating power	Kw	8/12	10/15	18	27	40	60
Amount of liquefied gas	Kg/h	0.6	0.6	0.8	1	3	4.5
Natural gas consumption	M3/h	1.5	1.5	1.7	2	6	9
Natural gas pressure	kpa	5	5	5	5	5	6
Steam consumption	Kg/h	35	35	40	50	70	110
Steam pressure	mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Power source	V	220/380	220/380	380	380	380	380
Overall dimension	mm	85010001550	85010001600	112010801800	112014501850	138015002200	162018002550
Weight	Kg	230	280	400	480	680	1200

kingwashing

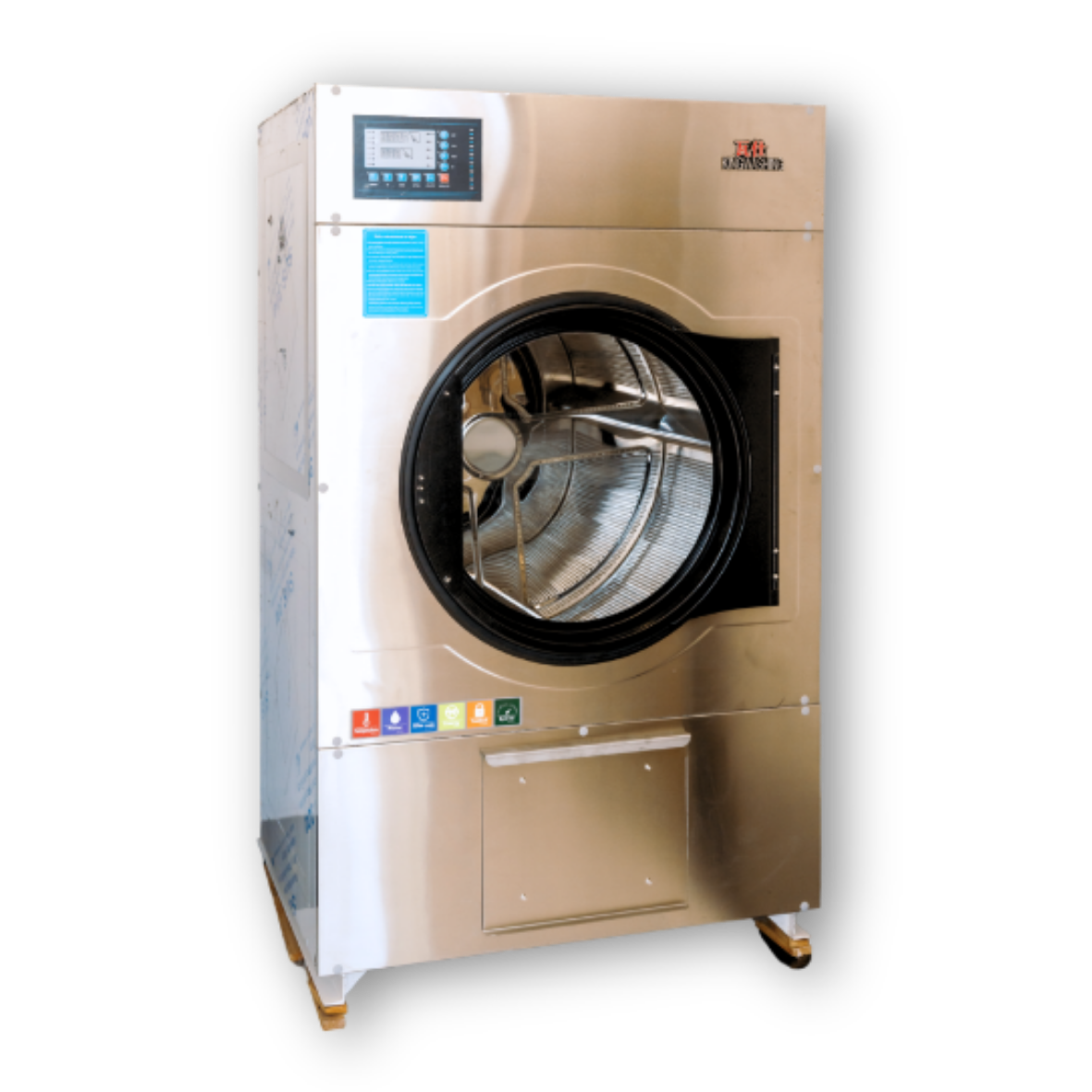

Fully Automatic Dryer Machine

Optimize the design of heat dissipation and fan; adopt features like efficient heat dissipation, adjustable wind speed, and air volume to save energy and shorten drying time.
The volume ratio of the inner drum is 1:20. It uses high-quality imported bright stainless steel plate to reduce fabric wear. The panel and inner drum are made of high-quality 304 stainless steel plates, and the inner drum plate and holes are smooth, flat, and burr-free.
The computer fully automatically controls the inner drum temperature, featuring automatic switching for start/stop, precise temperature control devices, and hot air selection programs to ensure the fabric is well-protected. It is equipped with a temperature control device and an over-temperature protector.
The large-area, rectangular velvet collection net (or lint screen) is designed for convenient and fast cleaning of lint, preventing blockages and ensuring a smooth air duct.
The machine utilizes a large fan with a large exhaust channel design, which significantly improves wind speed and air volume and accelerates drying.
The bearings are sealed, large-size, high-quality brand bearings, which increase the service life of the machine and ensure more stable operation.
The pulley is a European standard reinforced pulley, which effectively reduces friction loss of the V-belt, making the machine more energy-efficient and quieter.
